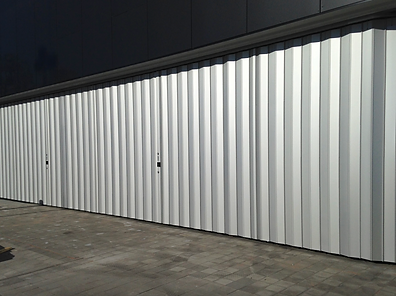

Global Sliding / Folding Shutter

With full height solid aluminium panels.

A SimFlex Spec Sheet

Curtain Construction

The top and bottom of each panel section is fitted with a 102mm high aluminum panel. This panels consists of an aluminium extrusion 2mm thick. It is connected into extruded hinge cleats with a 15% offcut to facilitate folding. The curtain is constructed of 152mm wide modules linked together by a continous aluminium hinge. These hinges hold different curtain designs created by using infills, eg. tempered glass, Lexan polycarbonate, solid aluminium or grille panels arranged in a chequer plate design. (Lexan is a trademark of GE Polymers)

Stacking

Allow 95mm per linear metre of Global Sliding Shutter, then add 76mm for each post member (lead, intermediate or end posts). Approximates to about 15% of Global Sliding Shutter length.

Weight

11kg/m2
